1
|

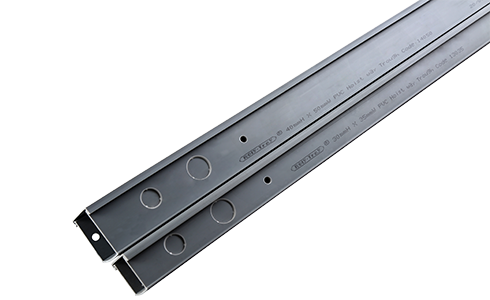

Type (CENLEC) code
|
H05VVH6-F
|
|
2
|
Brand Name
|
ROLLIFLEX
|
|
3
|
Reference standard
|
EN 50214 & IEC 60227 Part 6
|
|
4
|
Application
|
Used as Pendant Lift/Elevator Cables for Low rise & Low speed up to 50meter & 1.6 m/s, with easy communication/signaling norms.
|
|
4.1
|
Special Feature
|
Online quality Extrusion Knurling enable cable to proper grip over pulleys.
|
|
5
|
Ratings
|
|
5.1
|
Voltage Rating
|
300/500V
|
|
5.2
|
Temperature rating
|
-20 to +70°C
|
|
5.3
|
Min. Bending radius
|
5 x D (Ht)
|
|
6
|
Conductor
|
20 x 0.75mm2
|
2x2 x 0.50mm2
|
|
6.1
|
Conductor Material
|
Plain Copper Wires
|
Tinned Copper Wires
|
|
6.2
|
Conductor Construction
|
24/0.20mm (Class 5 IEC 60228)
|
16/0.20mm (Class 5 IEC 60228)
|
|
6.3
|
Max DC Resistance @20*C Ω/km
|
26.00 Ω/Km
|
40.1 Ω/Km
|
|
7
|
Insulation
|
Extruded PVC
|
Extruded PE
|
|
7.1
|
Material
|
PVC {Type TI2: EN 50363-3 }
|
PE {LDPE:EN 50290-2-23 }
|
|
7.2
|
Minimum Insulation Thickness ( mm)
|
0.38mm
|
0.38mm
|
|
7.3
|
Core Identification
|
Black 1-19 nos printed & Y/G
|
Pair#1: Blue & White; Pair#2:Orange & White
|
|
8
|
Twisting Pairs
|
N/A
|
2x2 (Twisted 10 twists/mtr min)
|
|
9
|
Screening (Shield)
|
N/A
|
Individual pair with ATC Wire braiding with 70% coverage
|
|
10
|
Cable Assembly
|
20 Cores + 2 Screened pairs laid parallel with groups (5x4) +2x2
|
|
10.1
|
Rip Cord
|
Cotton Threads are place in each group to strip out sheath.
|
|
11
|
Sheath
|
|
11.1
|
Material
|
PVC {Type TM2: EN 50363-4-1/ Type ST5:IEC 60227-1}
|
|
11.2
|
Colour
|
Black
|
|
11.3
|
Sheath Thickness- Minimum
|
1.00mm
|
|
11.4
|
Overall Diameter - Maximum
|
58 +/-2(Width) x 6 (Ht) mm
|
|
12
|
Electrical Properties
|
|
12.1
|
High Voltage Test
|
2KV AC for 15 Minutes (for 0.50sqmm 1Kv-1 Minute)
|
|
12.2
|
Insulation Resistance @ 70*C
|
> 0.012 MΩ/km
|
|
13
|
Impact Test at -5°C
|
Pass as per EN 60811
|
|
14
|
Mechanical strength of cable:EN50396
|
Passed flexing Test – 60000 forward - backward cycles with 6Amp current/240V followed by Voltage test of 2000V.
|
|
15
|
Fire Test
|
Flame retardant as per IEC 60332-1-2
|
|
16
|
Resistance to
|
Oil, Water, Abrasion, Flame, Chemicals.
|
|
17
|
Print/Marking
|
ROLLIFLEX ( 20X0.75Sqmm + 2X2X0.50SQMM Shielded) FLAT TRAVELLING CABLE mm/yy mtr mark
|
|
18
|
Packing
|
500 mtr drum length or as per agreement between Rolliflex & customer
|
