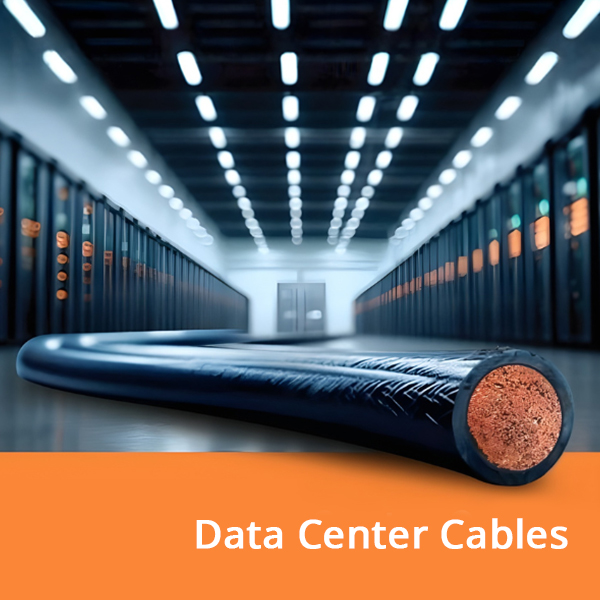

Data Center Cable

Enhance your data centre capabilities with Rolliflex Cables

RoHS & REACH, CPR compliant

CE: EN 50525-3-41 (H05Z-K): rated U/U0 300/500V

Zero Halogen – Flame Retardant & Low Smoke Cross-linked Thermoset

Anti-Rodent, Anti-Termite, Anti-Fungus

Features

(H07Z-K): rated U/U0 450/750V & BS7211

Test Voltage: 2.5kv ac

Voltage Rating: Upto & Including 450/750V (suitable for max 1100V applications)

Temperature Rating: -40 to +90Â°C (Short Circuit rating: +200Â°C)

IEC/EN 60228 Class 5 Electrolytic Grade (ETP Grade), Bare Cu wires (Tin coated Cu available on request)

Halogen Free Insulation EN 50363-5: EI5 (ZHLS/ZHFR) Zero Halogen-Flame Retardant & Low smoke Cross-linked Thermoset

Ozone resistance & UV resistance

Short circuit rating: 200Â°C

Design also follow as per BS 7211 & IS 17048 XZ90 Category

Improved fire performance cables (Safest)

Flame Retardant as per IEC 60332-1-2, IEC 60332-3-22

Very Low Smoke Density: Max 20% according to IEC 61034 / ASTM D 2843

Halogen Free, Corrosive gases / Halogen Content: Max 0.05% as per IEC 60754-1

pH: > 4.3 (IEC 60754-2)

Conductivity: < 10Î¼S/mm

Available in all major colours

Standard coil length: 100 meters

Bending Radius: 4Ã—D upto 6mmÂ², 6Ã—D (10-35mmÂ²), 8Ã—D > 35mmÂ²

Item Code	Item Size mmÂ²	Cable OD Nominal - mm	Max DC Conductor resistance at 20Â°C - Î©/km		Current Rating A for Amb temp up to +55Â°C	Short Circuit Rating kA for 1 second
Item Code	Item Size mmÂ²	Cable OD Nominal - mm	Plain	Tinned	Current Rating A for Amb temp up to +55Â°C	Short Circuit Rating kA for 1 second
31501 (H05Z-K)	0.50	2.4	39.00	40.1	11	0.0695
31601 (H05Z-K)	0.75	2.5	26.00	26.7	14	0.10425
31701 (H05Z-K)	1.00	2.6	19.50	20.0	19	0.139
31801 (H07Z-K)	1.50	3.0	13.30	13.7	24	0.2085
31901 (H07Z-K)	2.50	3.7	7.98	8.21	32	0.3475
32001 (H07Z-K)	4.00	4.2	4.95	5.09	42	0.556
32101 (H07Z-K)	6.00	5.0	3.30	3.39	54	0.834
32201 (H07Z-K)	10.00	6.7	1.91	1.95	72	1.39
32301 (H07Z-K)	16.00	7.8	1.21	1.24	96	2.224
32401 (H07Z-K)	25.00	9.8	0.780	0.795	128	3.475
32501 (H07Z-K)	35.00	11.0	0.554	0.565	158	4.865
32601 (H07Z-K)	50.00	13.5	0.386	0.393	198	6.95
32701 (H07Z-K)	70.00	15.0	0.272	0.277	245	9.73
32801 (H07Z-K)	95.00	17.0	0.206	0.210	293	13.205
32901 (H07Z-K)	120.00	19.5	0.161	0.164	342	16.68
33001 (H07Z-K)	150.00	22.5	0.129	0.132	390	20.85
33101 (H07Z-K)	185.00	25.0	0.106	0.108	445	25.715
33201 (H07Z-K)	240.00	27.5	0.0801	0.0817	527	33.36

Current carrying capacity of heat-resistant cables at an ambient temperature of 55Â°C or more:

Ambient temperatures in Â°C with cables with an adm. operating temperature of 90Â°C	Current-carrying capacity in % of the values in the selection table
Up to 55	100
55 - 65	92
65 - 70	85
70 - 75	75
75 - 80	65
80 - 85	53
85 - 90	38
