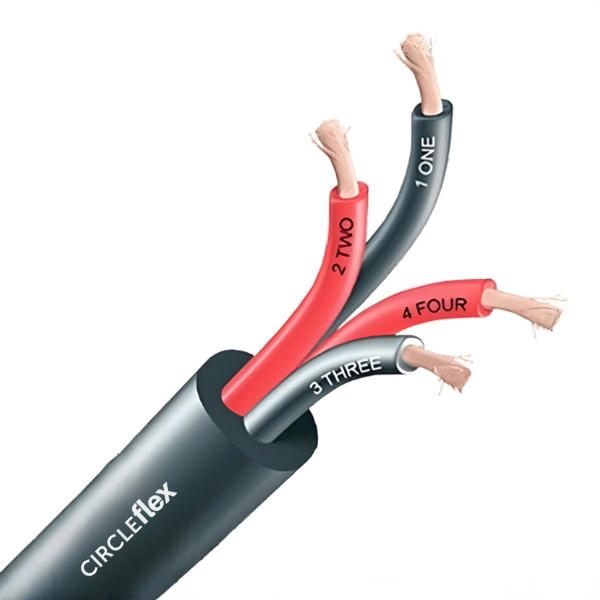

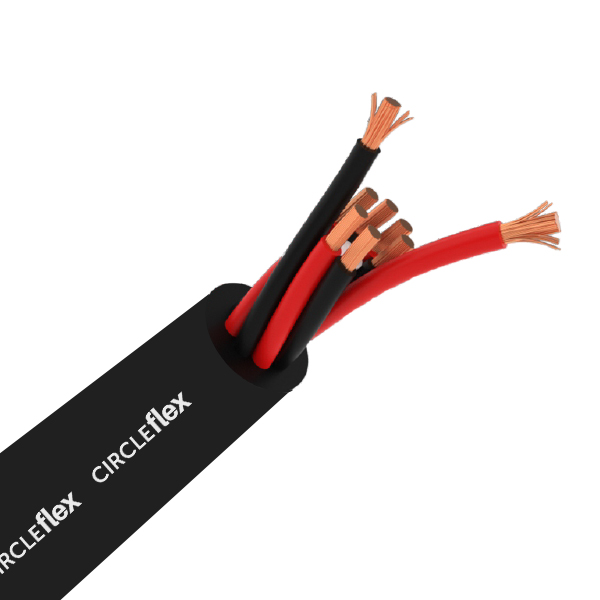

| Specification | Details |
|---|---|
| General Data | |
| Signal Type | Analog Audio |
| Conductor | |
| Material | Flexible electrolytic bare copper |
| Strands | 128 |
| Strands O.D. (mm) | 0.20 |
| Area (mm²) | 4 |
| Insulation | |
| Material | PVC |
| Insulation O.D. (mm) | 4 |
| Thickness (mm) | 0.8 |
| General Data – Speaker | |
| Cores | 4 |
| Jacket | |
| Cable O.D. (mm) | 12.96 |
| Color | Black |
| Material | PVC TM2 |
| Nominal Thickness (mm) | 2 |
| Mechanical Data | |
| Bending Radius (xO.D.) | 10 |
| Min Operating Temperature (°C) | -20 |
| Max Operating Temperature (°C) | 70 |
| Weight (kg/100m) | 30.80 |
| Electrical Data | |
| Max Conductor DCR (ohm/km) | 4.95 |
| Rated Voltage (Vac) | 300 |
| Test Voltage (Vac) | 2000 |
| Standards & Compliance | |
| Standard Reference | IEC 60332-1-2 |
| Specification | Details |
|---|---|
| General Data | |
| Signal Type | Analog Audio |
| Conductor | |
| Material | Flexible electrolytic bare copper |
| Strands | 80 |
| Strands O.D. (mm) | 0.193 |
| Area (mm²) | 2.5 |
| Insulation | |
| Material | PVC |
| Insulation O.D. (mm) | 3.4 |
| Thickness (mm) | 0.7 |
| General Data – Speaker | |
| Cores | 8 |
| Jacket | |
| Cable O.D. (mm) | 16 |
| Color | Black |
| Material | PVC TM2 |
| Nominal Thickness (mm) | 1.2 |
| Mechanical Data | |
| Bending Radius (xO.D.) | 10 |
| Min Operating Temperature (°C) | -20 |
| Max Operating Temperature (°C) | 70 |
| Weight (kg/100m) | 39.70 |
| Electrical Data | |
| Max Conductor DCR (ohm/km) | 7.98 |
| Rated Voltage (Vac) | 300 |
| Test Voltage (Vac) | 2000 |
| Standards & Compliance | |
| Standard Reference | IEC 60332-1-2 |
| Specification | Details |
|---|---|
| General Data | |
| Signal Type | Analog Audio |
| Conductor | |
| Material | Flexible electrolytic bare copper |
| Strands | 128 |
| Strands O.D. (mm) | 0.193 |
| Area (mm²) | 4 |
| Insulation | |
| Material | PVC |
| Insulation O.D. (mm) | 4 |
| Thickness (mm) | 0.7 |
| General Data – Speaker | |
| Cores | 8 |
| Jacket | |
| Cable O.D. (mm) | 19.5 |
| Color | Black |
| Material | PVC TM2 |
| Nominal Thickness (mm) | 2 |
| Mechanical Data | |
| Bending Radius (xO.D.) | 10 |
| Min Operating Temperature (°C) | -20 |
| Max Operating Temperature (°C) | 70 |
| Weight (kg/100m) | 65.50 |
| Electrical Data | |
| Max Conductor DCR (ohm/km) | 4.95 |
| Rated Voltage (Vac) | 300 |
| Test Voltage (Vac) | 2000 |
| Standards & Compliance | |
| Standard Reference | IEC 60332-1-2 |
| Specification | Details |
|---|---|
| General Data | |
| Signal Type | Analog Audio |
| Conductor | |
| Material | Flexible electrolytic bare copper |
| Strands | 128 |
| Strands O.D. (mm) | 0.193 |
| Area (mm²) | 4 |
| Insulation | |
| Material | PVC |
| Insulation O.D. (mm) | 4 |
| Thickness (mm) | 0.7 |
| General Data – Speaker | |
| Cores | 24 |
| Jacket | |
| Cable O.D. (mm) | 26.8 |
| Color | Black |
| Material | PVC TM2 |
| Nominal Thickness (mm) | 2 |
| Mechanical Data | |
| Bending Radius (xO.D.) | 10 |
| Min Operating Temperature (°C) | -20 |
| Max Operating Temperature (°C) | 70 |
| Weight (kg/100m) | 143.50 |
| Electrical Data | |
| Max Conductor DCR (ohm/km) | 4.95 |
| Rated Voltage (Vac) | 300 |
| Test Voltage (Vac) | 2000 |
| Standards & Compliance | |
| Standard Reference | IEC 60332-1-2 |

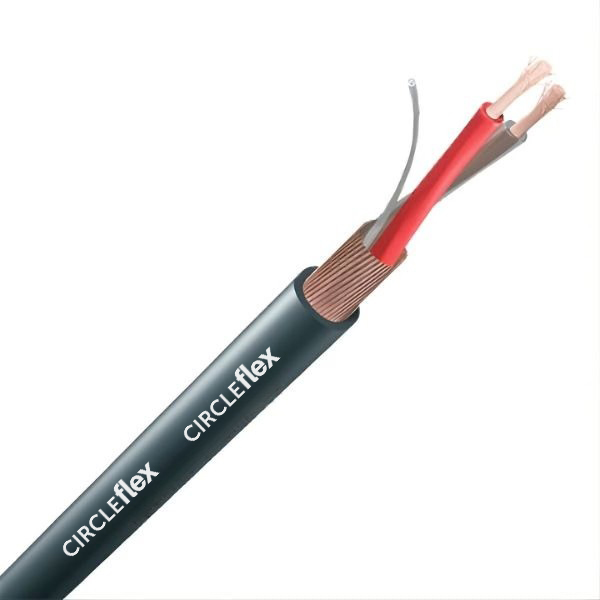

| Specification | Details |
|---|---|
| General Data | |
| Application | Mobile |
| Cable O.D. (mm) | 6 |
| Signal Type | Digital |
| Standard Reels (m) | 100 |
| Reel Material | Cardboard |
| Mechanical Data | |
| Bending Radius (xO.D.) | 10 |
| Min Operating Temperature (°C) | -20 |
| Max Operating Temperature (°C) | 70 |
| Weight (Kg/100m) | 4.80 |
| Conductor | |
| Material | Flexible electrolytic tinned copper |
| Strands | 7 |
| Strands O.D. (mm) | 0.2 |
| AWG | 24 |
| Insulation | |
| Material | Foamed Polyethylene |
| Insulation O.D. (mm) | 1.6 |
| Thickness (mm) | 0.5 |
| Shield | |
| Material | Bare copper |
| Shield Type | Braid |
| Coverage | 80% |
| Drain Wire Material | Tinned copper |
| Jacket | |
| Color | Black |
| Material | PVC TM2 |
| Nominal Thickness (mm) | 1 |
| Electrical Data | |
| Max Conductor DCR (ohm/km) | 94.2 |
| Conductor/Conductor Capacitance (pF/m) | 70 |
| Rated Voltage (Vac) | 300 |
| Test Voltage (Vac) | 2000 |
| Standards & Compliance | |
| Standard Reference | IEC 60332-1-2 |
| IEC 60332-3-24 | |
| Additional Information | |
| Notes | Not suitable for applications above 50 volt ac; 75 volt dc. |

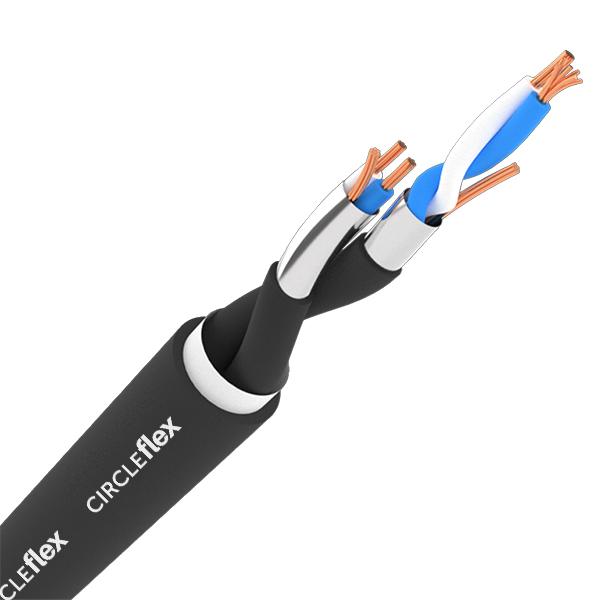

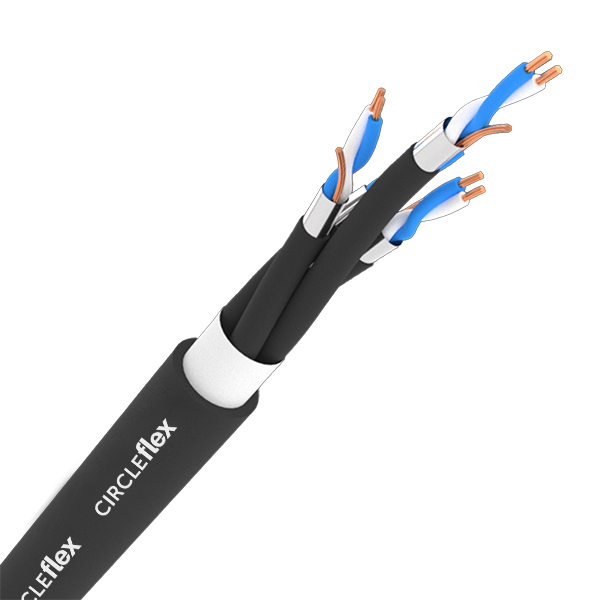

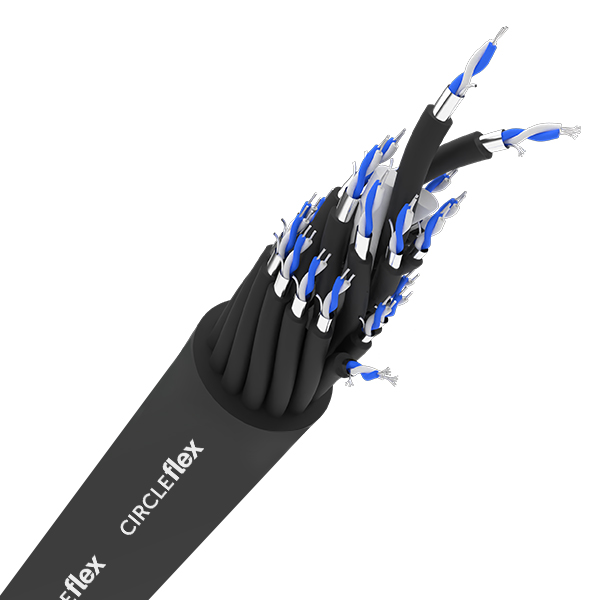

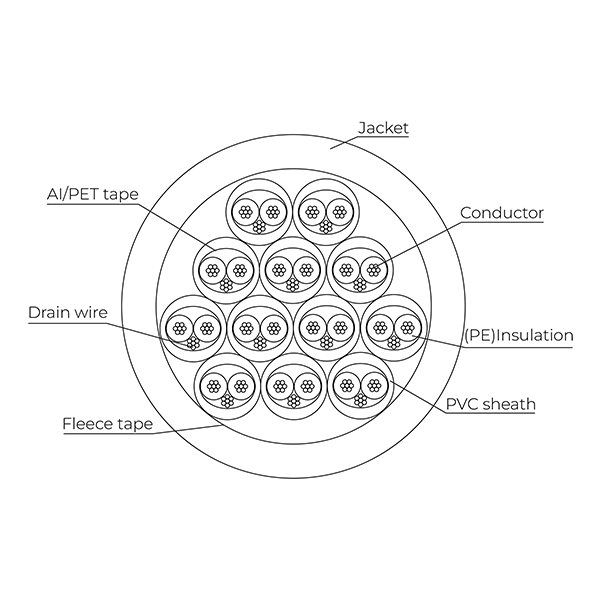

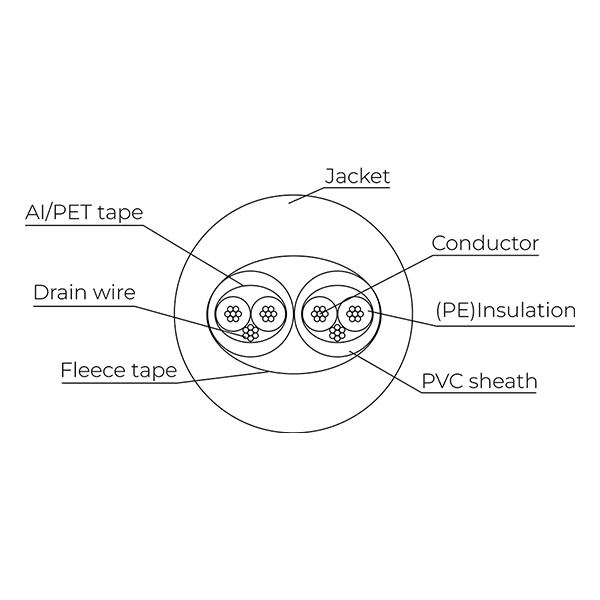

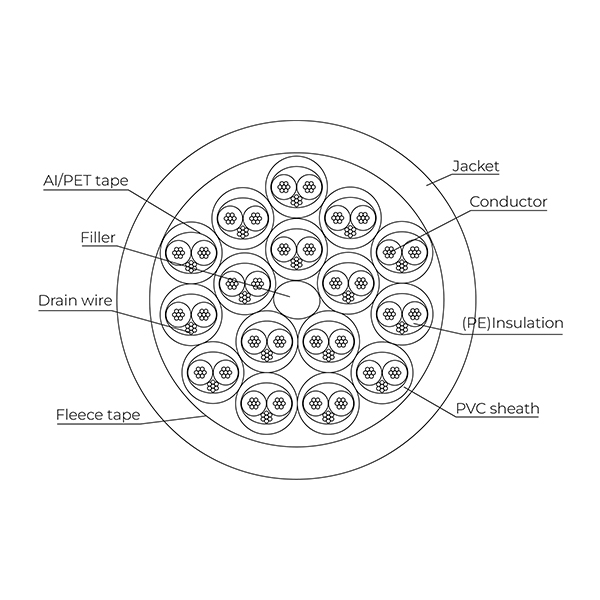

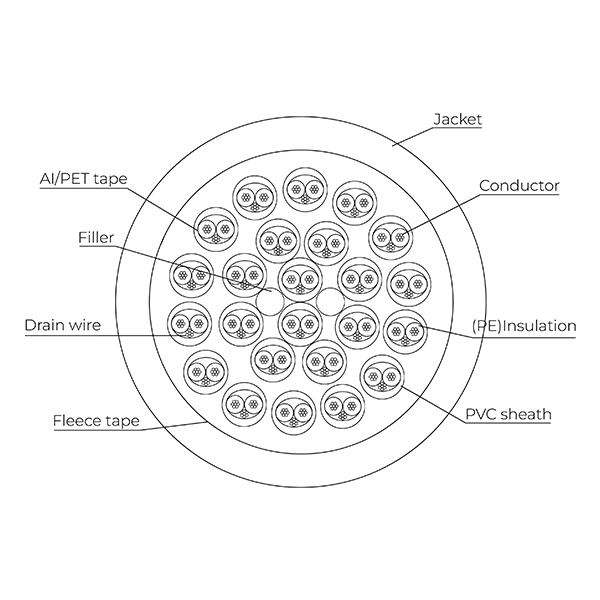

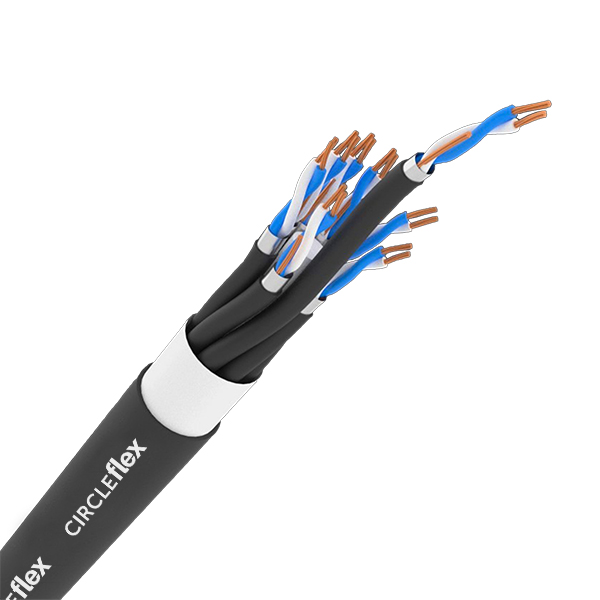

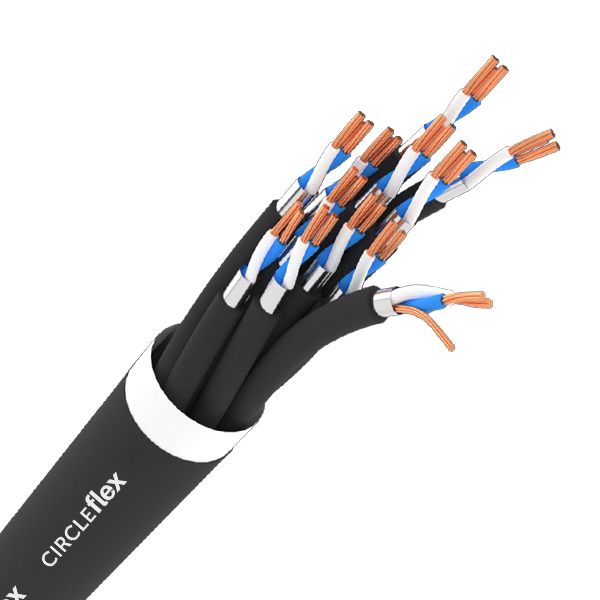

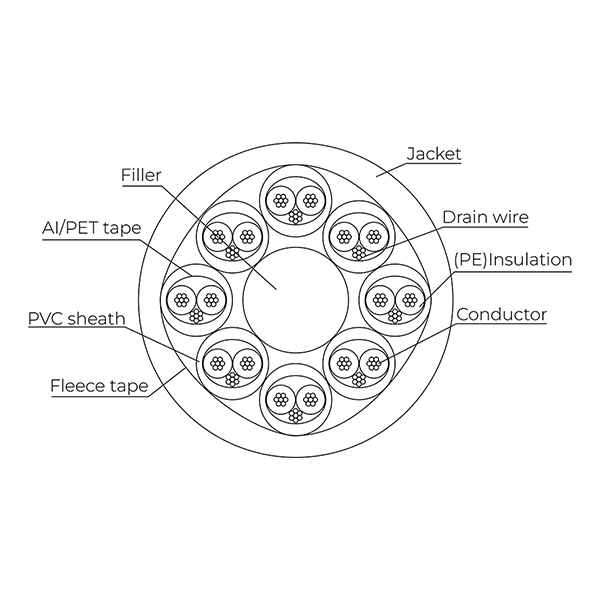

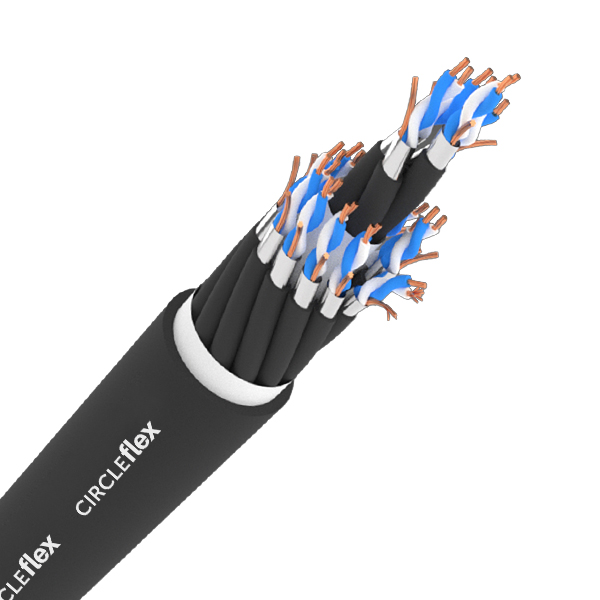

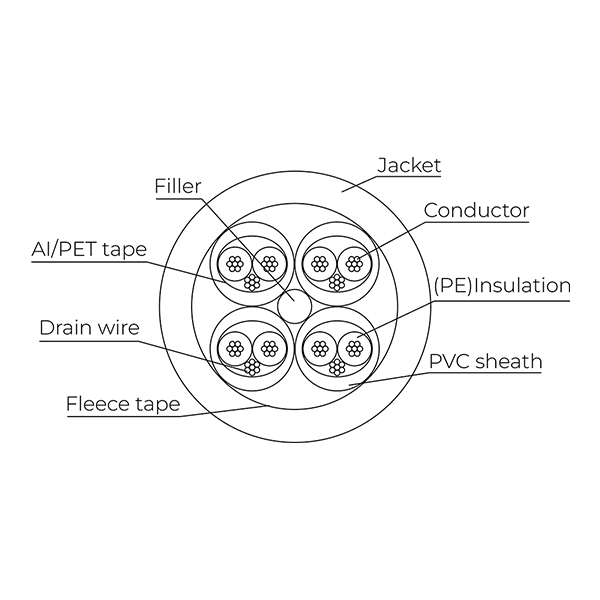

Circleflex’s multi-format analog and digital audio/DMX multipair cables are crafted to meet the highest standards of professional performance. Designed to support analog, digital, and DMX audio applications, these cables deliver exceptional versatility for sophisticated audio systems. Precision-engineered aluminum shielding on each pair ensures outstanding protection against interference, resulting in pristine signal clarity and uncompromised sound quality. Built with a rugged, long-lasting construction, Circleflex cables excel in both mobile and fixed installations. Trusted in live productions, recording studios, and broadcast environments, Circleflex provides reliable, premium cable solutions for flawless audio transmission in the most demanding conditions.

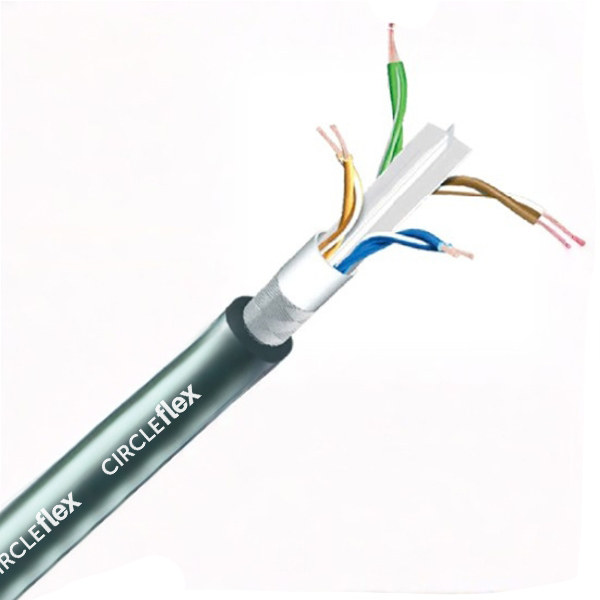

| Specification | Details |
|---|---|
| General Data | |
| Application | Mobile |
| Signal Type | Digital Data |
| Standard Reels (m) | 305 |
| Reel Material | Wooden |
| Conductor | |
| Material | Copper |
| Strands | 1 |
| Strands O.D. (mm) | 0.57 |
| Insulation | |
| Material | Polyethylene |
| Insulation O.D. (mm) | 1.06 |
| Shield | |
| Material | Tinned copper |
| Shield Type | Braid |
| Coverage | 80% |
| Jacket | |
| Cable O.D. (mm) | 8.5 |
| Color | Black |
| Material | PVC Compound |
| Mechanical Data | |
| Min Operating Temperature (°C) | -15 |
| Max Operating Temperature (°C) | 80 |
| Weight (Kg/100m) | 9.20 |
| Electrical Data | |
| Nominal Impedance (ohm/100m) | 100 |
| Propagation Velocity | 67% |
| Insulation Resistance (MΩ/Km) | 5000 |
| Mutual Capacitance (pF/m) | 48 |
| Test Voltage (Vac) | 1000 |
