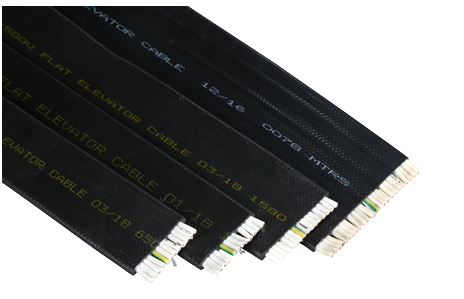

Flat Elevator Cables

• Conductor: Flexible bright annealed bare copper conductor Class 5, manufactured using 99.97% pure electrolytic grade copper, with more than 100% conductivity, as per IEC 60228
• Insulation: The best in it's class, Rolliflex uses a high grade insulation PVC which passes tests as per EN 50214. It is blended with premium elastomers to give a leading edge to the product in terms of life and flexibility.
• Core Identification: White Core's with black numbering along with one Yellow/Green Earthing core.
• Outer Sheath: Specially formulated PVC with a blend of Elastomer, for continuous flexing operation, meeting the requirement of Type ST 3 as per IEC 60227-2, in black color
• Mechanical Properties
  • Free Suspension Length: 45Meters (Max.)
  • Travelling Height: 80Meters (Max.)
  • Running Speed: 4 Meters. / Second (Max.)
  • Acceleration: <0.8 Meters / Second
  • Operating Temp:
    Mobile Utilization -50C ~ +700C
    Fixed Utilization -100C ~ +700C
  • Bending Radius: Cable Thickness x 10 (Min)
  • Recommended Loop Dia:
    Cable Thickness D < 5 mm; D x 70 (min.)
    Cable Thickness D < 5~9 mm; D x 65 (min.)
    Cable Thickness D > 9 mm; D x 60 (min.)
    According to table, Tolerance -50 mm, +100 mm
  • IR Constant at 270C: 36.7 M O km
  • Flame Retardance: IEC 60332-1

• Enquire Now

We are manufacturing high end robust CCTV Flat travelling cables for lifts.

• Two Variants:
  • IP Cameras & Analog Cameras
  • High Flexibility ensures continous security
  • Made in RoHS & Anti-rodent properties
• CANBUS / MODBUS / SERIAL COMMUNICATION CABLES
  • Best In Class Shielded Cables
  • Perfect Twisting and Lay Ratio to bring about the best noise cancellation results Layered with rubberised material to ensure flexibility and durability of the cable Now included in all in one - Composite Cables

• Enquire Now

• Size: 30mm (Height) x 35mm (Width) x 2000mm (length), 40 mm (Height) X 50 mm (Width) X 2000 mm (Length)
• Material: Rigid Polyvinylchloride (PVC) in Grey
• ADVANTAGES OF PVC TROUGHS AGAINST MS / GI:
  • Anti Rust (Non Corrosive) & Anti Rodent
  • PVC Troughs are Light in weight compare to MS & GI
  • Easy in handling.
  • Easy for installation & maintenance
  • Electrical, Thermal & Mechanical Properties are better than MS/GI
  • Extremely safe while erection and installation
