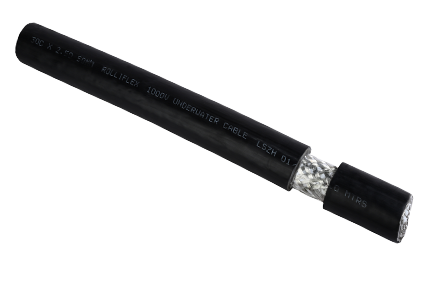

Ideal for Marine shipboard, offshore, Boat Applications. Also Suitable for Electric power, lighting, internal wiring for control plants, switchgears, Railways, Hospitals, Hotels , Multi storey building wirings, Malls, cinema halls, airports, Air conditioning plants, Steel plants, etc where highest fire safety and environment protection is desired. During fire conditions these cables not only emit less smoke (white smoke) and toxic gases but also retard the flame from spreading.
SPECIAL FEATURES:
Certified from Lloyed's register (LR)
Heat Resistant upto 90℃. Flame Retardant acc. to IEC 60332-1-2.Fire Retardant acc. to IEC 60332-3-22 Cat. A
Smoke emission properties acc. to IEC 61034-1/2
Halogen Free acc. to IEC 60754-1/2
RoHS Compliance according to directive 2011/65/EU
CE Certified as per Low Voltage directive 2014/35/EU
High Insulation Resistance
Resistant to Water/saltwater, Moisture, UV/sunlight, Ozone, Weather, Oil, Most of chemicals, fumes & solvants
Enquiry form

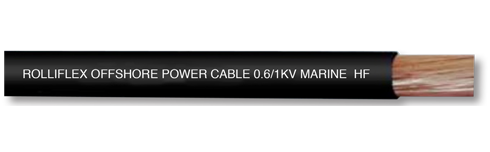

SHIPBOARD & OFFSHORE POWER CABLE 0.6/1KV
Single Core unarmoured (Halogen Free) accd. to IEC 60092-353
CONSTRUCTION
Conductor: Annealed Plain/Tin Coated Copper according to IEC 60228 Cl. 2/5
Insulation: Halogen free crosslinked HF-90 Insulation according to IEC 60092-360
Binder tape: Polyester Tape between Conductor & Insulation (Optional)

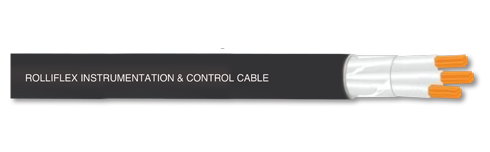

(Shipboard&Offshore) Multicore Cable Screened/ Unarmoured 150/250V according to IEC 60092-376
CONSTRUCTION
Conductor: Annealed Plain/Tin Coated Copper according to IEC 60228 Cl. 2/5
Insulation: Halogen free crosslinked HF-90 Insulation according to IEC 60092-360
Cable Core assembly: Generally Black with nos. (other colours on demand) laid up together to form a rope.
Screen: Overall Screen of Alluminium backed myler tape applied helically over cable core assembly with Tinned copper drain wire at metallic side of tape, followed by polyester binder tape.
Outer Sheath: Halogen free polyolefin base SHF-1 Sheath according to IEC 60092-360 (Generally Black)

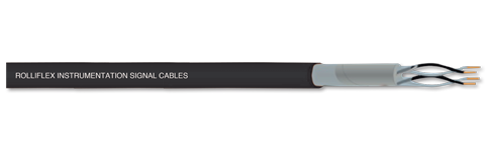

(Shipboard&Offshore) Single/Multi Pairs/Triad Twisted, Overall Screened Unarmoured 150/250V according to IEC 60092-376
CONSTRUCTION
Conductor: Annealed Plain/Tin Coated Copper according to IEC 60228 Cl. 2/5
Insulation: Halogen free crosslinked HF-90 Insulation according to IEC 60092-360
Cable assembly: Cores twisted together to form a Pair/triad. All Pair/Triad laid up to form a rope assembly (Pair: Black & White with nos; Triad: Red, Black & White with nos)
Screen: Overall Screen of Alluminium backed myler tape applied helically over cable Pair/traid assembly with Tinned copper drain wire at metallic side of tape, followed by polyester binder tape.
Outer Sheath: Halogen free polyolefin based SHF-1 Sheath according to IEC 60092-360 (Generally Black)

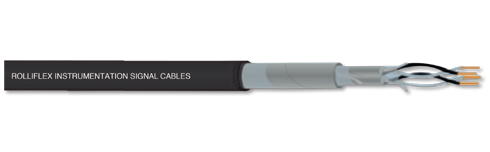

(Shipboard&Offshore) Multicore Cable Screened/ Unarmoured 150/250V according to IEC 60092-376
CONSTRUCTION
Conductor: Annealed Plain/Tin Coated Copper according to IEC 60228 Cl. 2/5
Insulation: Halogen free crosslinked HF-90 Insulation according to IEC 60092-360
Cable Pair/Triad assembly: Cores twisted together to form a Pair/triad. After individual screening; All Pair/Triad laid up to form a rope assembly (Pair: Black & White with nos; Triad: Red, Black & White with nos)
Screen: Over Individual Pair/Triad & Over overall rope assembly Screen of Alluminium backed myler tape applied helically over cable Pair-Triad/Pair-Triad assembly with Tinned copper drain wire at metallic side of tape, followed by polyester binder tape.
Outer Sheath: Halogen free polyolefin SHF-1 Sheath according to IEC 60092-360 (Generally Black)
